Technical Documentation

On-Premise Architecture & HW/SW Req.

Hardware / Software Requirements

Server

Hardware

Software

Production Application Server

Windows server will host EASYProcess application servers, web applications and batch jobs

  • Processor
  • Architecture: 64-bit
  • OS: Windows Server 2022 R2 / 2016+
  • 8 GB RAM, 80 GB Hard Drive (30 OS, 50 App)
  • CPU: 2 or 4 Intel Dual / Quad Core 2.5 GHz
  • .NET Framework 4.6.2+
  • Database Drivers*
  • SQL Server Management Studio
Development & QA/PY Application Server

Windows server will host DV and QA/PY EASYProcess application services, web applications (optional), and batch jobs

  • Processor
  • Architecture: 64 bit
  • OS: Windows Server 2022 R2 / 2016+
  • 4 or 8 GB RAM, 80 GB Hard Drive (30 OS, 50 App)
  • CPU: 2 or 4 Intel Dual / Quad Core 2.5 GHz.
  • .NET Framework 4.6.2+
  • Database Drivers*
  • SQL Server
  • Management Studio
SQL Server

SQL server will store all data related to EASYProcess applications. One server can host all EASYProcess environments. Each EASYProcess application requires a database instance.

  • Processor
  • Architecture: 64 bit
  • OS: Windows Server 2022 R2 / 2016+
  • 8 or 16 GB RAM, 100 GB Hard Drive
  • CPU: 4 or 8 Intel Dual / Quad Core 2.5 GHz.
  • SQL Server
  • Web Edition 2016+
Web Server

Windows server will host EASYProcess application web files and Windows IIS. A single web server can support all EASYProcess applications. Support for load balancing also exists – talk with your implementation lead on the ways this can be configured to best meet your application’s needs.

  • Processor
  • Architecture: 64 bit
  • OS: Windows Server 2022 R2 / 2016+
  • 2 or 4 GB RAM, 80 GB Hard Drive (30 OS, 50 App)
  • CPU: 1 Intel Dual / Quad Core 2.5 GHz.
  • Latest IIS Version
Developer Workstation (Optional)

Latest Windows Desktop Version

  • 2-4 GB RAM
  • 20 GB HD
  • .NET Framework 4.6.2+
  • Database Drivers*
  • SQL Server Management Studio

On-Premise Architecture & HW/SW Req.

Hardware / Software Requirements

Frame 193 (3)
Frame 192 (2)
Frame 191 (1)

*Database Drivers:

MYSQL Database Server

.NET Native SQL Driver, Part of .NET Framework

Oracle Database Server

Oracle Database Client with OleDb and Oracle Providers for .NET Drivers

IBM ISeries Database

Client Access Express Full Install

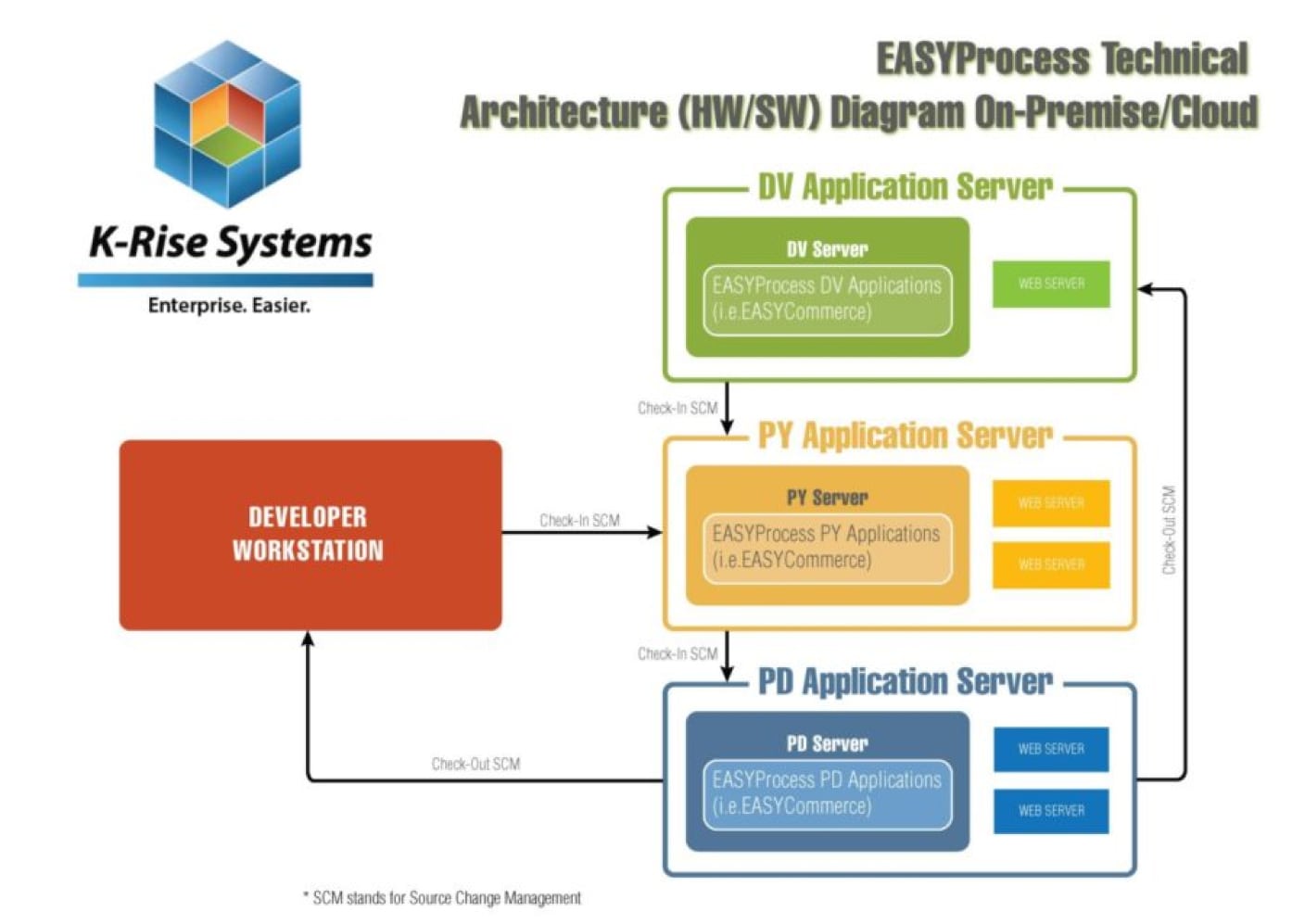

HW/SW Architecture
Diagram

Network Architecture
Diagram (Cloud)

JD Edwards Integration

EASYProcess can be implemented for all versions of JD Edwards, from the latest Enterprise One and further back to World 7.33. EASYProcess has the ability to call business functions within your system the way they are currently being used.

Have international customers and employees? Don’t worry. EASYProcess

makes use of emulators to perform background functions the same way your users would. Direct table look-ups for inquiries can also be done by combining results with data from other sources as well. Reporting across data sources is a major feature of any EASYProcess application.
